Brewery Cylindrically Conical Beer Fermentation Tank CCT

  • Brewery Cylindrically Conical Beer Fermentation Tank CCT
  • Brewery Cylindrically Conical Beer Fermentation Tank CCT
  • Brewery Cylindrically Conical Beer Fermentation Tank CCT
  • Brewery Cylindrically Conical Beer Fermentation Tank CCT

Brewery Cylindrically Conical Beer Fermentation Tank CCT

    Payment Type: L/C,T/T,D/P
    Terms of Trade: FOB,CFR,CIF,EXW
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days
    Packaging: Standard export packing
    Productivity: 100 set / month
    Brand: Deao
    Transportation: Ocean,Land,Air
    Place of Origin: China
    Supply Ability: 20 set per month
    Certificate: CE
    HS Code: 8438400000
    Port: Shenzhen Port,Dongguan Port,Hong Kong Port

Basic Info

Model No.: DHB-FT

Product Description

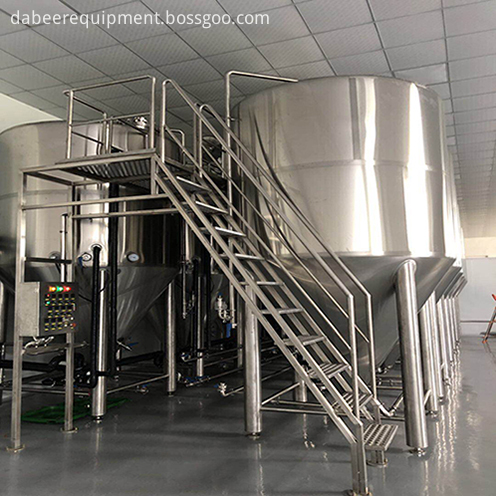

Brewery Cylindrically Conical Beer Fermentation Tank CCT

The production of beer usually use stainless steel CCT, which is a cylindrical tank with a conical bottom. It is used for primary fermentation or entire fermentation process. Our brewery beer fermentation tanks take sanitary as the most important aspect during fabrication. With beer tap, sample faucet, drainage, CIP system, thermometer, security valve, CO2 regulate valve, PT100 and all necessary fittings and connectors.

We manufacture fermentation tanks at size from 50L nano to 3hl, 5hl, 10hl, 20hl taproom tanks to 30hl, 50hl, 150hl commercial brewery tanks, and we also undertake construction for you on an Original Equipment Manufacturer (O.E.M), or size as to your brewery spaces.

Details of the our product are featured within content below:

for example 6000L fermentation tank

fermenter 60 hl

  • double walled, completely insulated
  • upright construction, test pressure 0,99 bar
  • upper bottom as dished head
  • lower bottom as conical bottom with opening angle 60°

ferment drawing

equipped with:

  • upper bottom
  • 1 connection piece DN 25/25 DIN 11851
  • for RLV fitting with CIP connection piece DN 25
  • 2 crane eyes
  • 1 manhole 350 x 450 mm
  • 2 connections for cooling, welding nipple R ½[
  • 1 thermometer
  • 1 connection piece R ½[
  • 1 outlet DN 32 DIN 11851
  • 3 feet made of stainless steel with pressure plates

Fermentation Tanks Control system:

1. Tanks Temperature automatic controlled by combined PLC system

2. Tanks controlled by individual temperature controller without cold water tank.

CIP for Fermentation tanks

1. Mobile CIP

two tanks 150L, acid tank and alkaline tank with heating elements

with pump

150L mobile cip

2. Automatic CIP system

For scale brewery, we will design automatic cleanning system as to your detailed need.

All the valves are pneumatic valves, which are controlled by computer.

With a series of recycle and cleaning liquid storage tanks as to number of fermentation tanks


2000l Fermentation Tank

Cooling plant – Glycol for wort and vessel cooling

in compact design:

for internal installation

made as one-circle system

refrigerant: R134a

glycol wage: 20%

cooling plant

Complete flowchart for example:

Flow Chart

Dongguan Deao Food Equipment Co.,Ltd

 Deao Beer Equipment Co.,Ltd locates in north Pearl River Delta, Dongguan city, where is the manufacturing heartland in China. Our workshop area is larger than 20,000 square meter,specialized in craft brewing equipment, microbrewery system, homebrewery, keg washing and filling machine since 2012. The company was established by Mr. Wang Guodong, though the company is very young, Mr. Wang has been in beer equipment industry for more than 20 years. In 2014 Deao collaborates with BTB Engineering from Germany, which is a professional brewing equipment manufacturer since 1996. We continue to develop different types of products at highs tandard quality for local and international clients. Deao has a team of brewmaster and brewers. They can help our clients to learn equipment operating and beer brewing efficiently. The beer consumption is growing fast all over the world, especially in Asia, Australia and America. Deao constantly provide customers with high quality equipment, fast after sales service and beer marketing consultant. Welcometo take a drink in our company, cheers!
